If you browse any Squarebody forum, you will see the same question asked thousands of times: "Can I put Dana 44 crossover steering on my corporate 10-Bolt axle?"
The answer is yes—but with a catch.
While the GM Corporate 10-Bolt (8.5") and the Dana 44 are completely different axles internally, their "outer" architecture shares a secret DNA. Understanding this compatibility is the key to unlocking the (https://www.eastwestoffroad.com/product/ewo-chevy-10-bolt-complete-1-ton-crossover-high-steer-kit) for your rig.
The Secret Interchange: "Outer Cs" and Knuckles
Here is the technical reality: General Motors standardized the steering knuckle mounting points (the inner "C" on the axle tube) across both the Dana 44 and the 10-Bolt front axles used in ½-ton and ¾-ton trucks from the 1970s through 1991.
This means a knuckle from a 1974 Dana 44 will physically bolt onto a 1985 10-Bolt axle. This interchangeability is what allows for the popular Dana 44 to 10 Bolt steering swap.
The Problem: The Missing "Flat Top"
If the knuckles interchange, why can't you just buy a steering arm? The problem isn't the bolt pattern; it's the casting itself.
- Pre-1977 Dana 44s: Often came with "flat top" passenger knuckles that could be machined to accept a steering arm.
- Post-1977 10-Bolts: Came with "round top" knuckles. There is physically no material to bolt a crossover arm to.
This leaves 10-Bolt owners stuck. You want an off road steering correction kit to fix your handling, but your factory knuckle prevents it.
The EWO Solution: A Hybrid Ecosystem

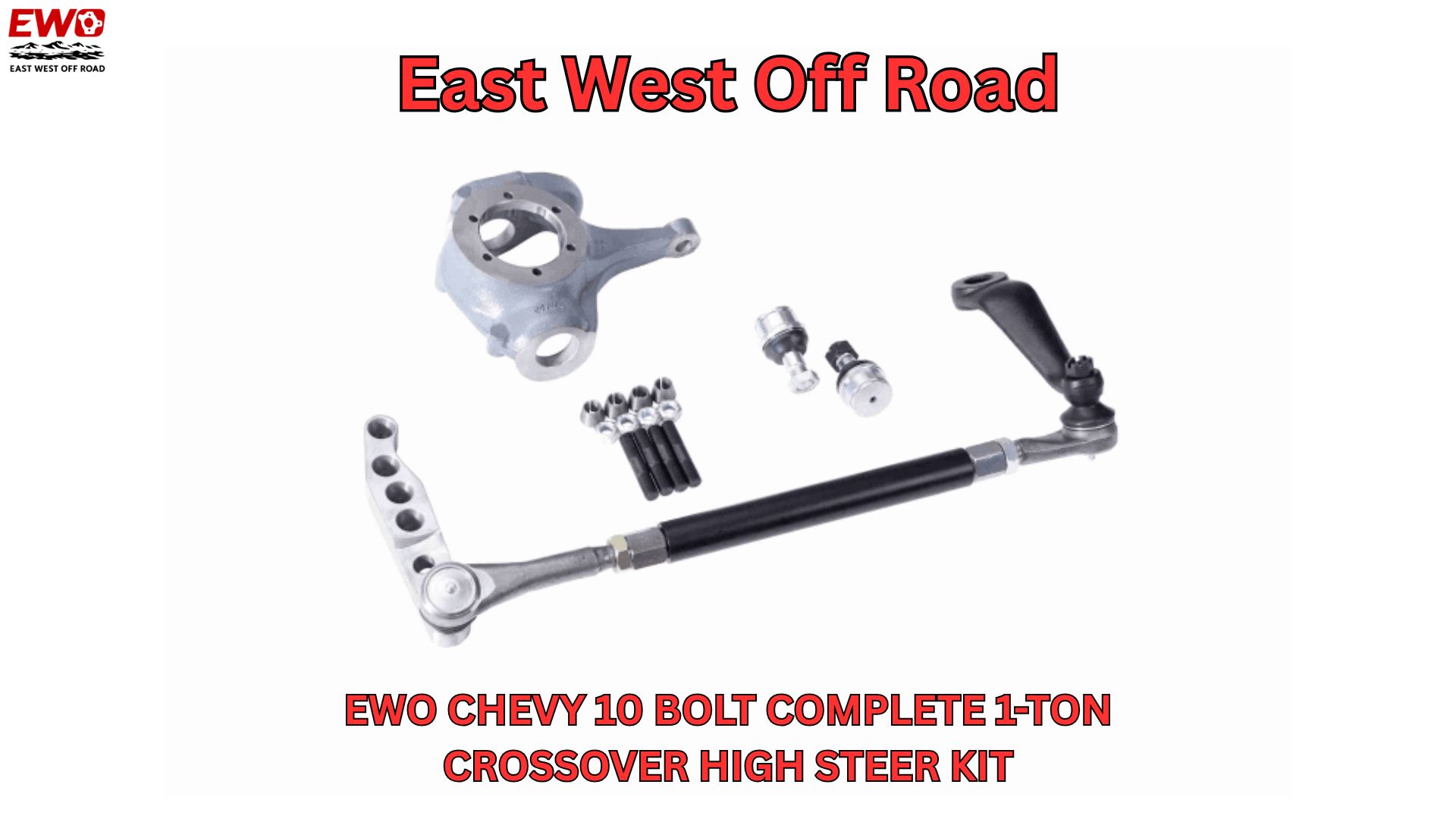

East West Offroad (EWO) eliminates this compatibility headache. The EWO Complete Kit includes a newly manufactured flat top knuckle conversion kit.
This knuckle is engineered to be the "universal translator." It features:
- Dana 44 Geometry: It accepts the legendary 4-bolt high steer arm.
- 10-Bolt Compatibility: It mounts perfectly to your 10-Bolt ball joints, accepts your 10-Bolt spindle, and fits your factory brake caliper bracket.
You do not need to swap your entire axle to get good steering. You just need the right knuckle.
Why This Upgrade is Critical for 10-Bolt Owners
The 10-Bolt axle is often criticized for being "weak," but for 35-inch tires, it is plenty sufficient—if you fix the steering. The stock steering places immense stress on the frame and limits articulation.
By installing the EWO Chevy 10 Bolt crossover steering kit, you gain:
- Zero Bump Steer: The crossover geometry moves the drag link side-to-side, which is the only way to eliminate bump steer lifted Chevy trucks suffer from.
- 1-Ton Strength: The kit serves as a massive GM 1 ton tie rod upgrade. You get thick DOM tubing and metal-on-metal tie rod ends that are significantly stronger than the factory 10-Bolt linkage.
- Frame Protection: Crossover steering pushes against the leaf spring compression rather than pulling against the frame rail, reducing the likelihood of steering box stress cracks.
High Steer vs. Crossover: What's the Difference?
This kit offers both.
- Crossover: Moves the drag link to the passenger side.
- High Steer: Moves the tie rod up above the leaf springs.
The included K5 Blazer high steer system arms are 1.25" thick billet steel. They raise your heavy duty drag link kit Chevy linkage out of the mud and rocks, protecting it from impact damage while correcting the angle for lifted suspensions.
Summary
Don't let the "10-Bolt vs. Dana 44" debate stop you from upgrading. With the EWO Complete Kit, you get the best of both worlds: the ease of keeping your stock axle and the performance of a custom Dana 44 high steer setup.
Compatibility Quick-Reference
- Your Truck: 1973–1987 Chevy/GMC K10, K20, K5 Blazer, Suburban (or up to 1991 for R/V models).
- Your Axle: Factory 10-Bolt or Dana 44.
- Required Change: Must switch to a 2WD steering box.
- The Result: 1-Ton Crossover High Steer.
