When it comes to heavy-duty steering components for solid axle swaps and lifted trucks, nothing carries more credibility than a GM 1 ton steering kit. The 1-ton GM steering components—specifically the ES2026R, ES2027L, ES2234L, and ES2234R tie rod and drag link ends—have become the gold standard for off-road steering upgrades. These massive 7/8-inch stud components are designed to handle the weight and abuse of 1-ton trucks, making them the perfect foundation for any serious Dana 60 steering conversion. Whether you are building a rock crawler, towing heavy loads, or running 40-inch tires, GM 1-ton steering components provide the strength and reliability you need.
Why GM 1-Ton Components Dominate the Off-Road Market
The reputation of GM 1-ton steering components is not accidental. These parts were engineered for the heaviest-duty applications GM ever produced, and they have proven themselves over decades of use in both stock and modified vehicles.
The 7/8-Inch Stud Advantage
The most obvious difference between GM 1 ton steering kit components and lighter-duty parts is the stud diameter. Where half-ton and three-quarter-ton trucks use 5/8-inch or 3/4-inch studs, GM 1-ton components use massive 7/8-inch studs. This extra diameter provides significantly greater shear strength and bending resistance. The cross-sectional area of a 7/8-inch stud is approximately 36% larger than a 3/4-inch stud. When you are navigating rocky trails with 40-inch tires, that extra margin of strength can mean the difference between driving home and calling for a tow.
Forged Construction vs. Cast
Genuine GM 1-ton steering ends are forged, not cast. Forging aligns the grain structure of the steel, creating a component that is significantly stronger than cast alternatives. Forged ends resist cracking under shock loading—like landing a jump or dropping off a ledge—far better than cast ends. The forging process also eliminates porosity, the microscopic air pockets that weaken cast components. This is why serious off-road builders seek out these specific components rather than aftermarket knockoffs.
The ES Series Legacy
The ES series of steering ends—including the ES2026R drag link kit components—has been the standard for heavy-duty steering for decades. These parts are available at any auto parts store, making trail repairs straightforward. When you build with GM 1-ton components, you are not locking yourself into proprietary parts that are hard to find. The ES series has proven itself in millions of trucks over half a century of production.
Component Breakdown: The ES Series Family
A complete GM 1 ton steering kit includes several specific components, each with a particular role in the steering system. Understanding each part helps you build a cohesive system.
ES2026R Drag Link Kit
The ES2026R drag link kit is the right-hand thread end that connects the drag link to the pitman arm. This component features the 7/8-inch stud and a heavy-duty housing designed to withstand the leverage of power steering systems. The "R" designation indicates right-hand thread, which determines how the drag link adjusts. The housing is forged and precision-machined to accept a grease fitting for regular lubrication. This end takes the most direct force from the steering box, so its strength is critical.
ES2027L Drag Link End
The ES2027L drag link end is the left-hand thread counterpart that connects the drag link to the passenger-side high steer arm. The opposing thread design (right-hand on one end, left-hand on the other) allows the drag link length to be adjusted simply by rotating the tube. This makes centering the steering wheel a straightforward task that can be done with basic hand tools. The ES2027L is identical in strength to the ES2026R, just with opposite threads.
ES2234L and ES2234R Tie Rod Ends
The ES2234L ES2234R tie rod ends are the components that connect the tie rod to the steering arms. Like the drag link ends, these use opposing threads for easy adjustment. The "L" and "R" designate left-hand and right-hand threads respectively. These ends feature the same 7/8-inch forged studs as the drag link ends, providing uniform strength across the entire steering system. When building a Dana 60 tie rod kit, these are the ends you want.
Integrating GM 1-Ton Components with High Steer Systems
GM 1-ton steering components shine brightest when integrated into a proper high steer or crossover steering system. The combination of heavy-duty ends and corrected geometry is unbeatable.
The High Steer Connection
A Dana 60 high steer kit moves the steering linkage above the leaf springs, protecting it from rocks and improving geometry. When you combine high steer with GM 1-ton ends, you get both protection and strength. The billet Dana 60 steering arms in a quality high steer kit are machined with tapered holes that accept the GM 1-ton ends perfectly. No adapters, no modifications—just bolt-in fitment.
Crossover Steering Geometry
A Dana 60 crossover steering kit repositions the drag link from the driver side to the passenger side, flattening the steering angle and eliminating bump steer. The ES2026R and ES2027L ends are specifically designed for this configuration, with the correct tapers and thread orientations for crossover applications. The passenger-side arm accepts the ES2027L directly, while the pitman arm accepts the ES2026R.
Kingpin Compatibility
For Dana 60 kingpin high steer applications, GM 1-ton ends are the perfect match. The kingpin design provides a solid foundation, while the GM ends provide the linkage strength. The combination is proven on countless rock crawling and trail rig builds. The tapered studs on GM ends match the taper angles used in quality high steer arms, ensuring proper seating.
The Springless Advantage with GM 1-Ton Components
When you use quality GM 1-ton components with properly machined steering arms, you can run a springless Dana 60 high steer system.
Why Springs Are Unnecessary
The tapered studs on GM 1-ton ends are designed to seat firmly in matching tapered holes. When the steering arms are machined to the correct specifications, the ends seat perfectly with zero play. No spring is needed to take up slack because there is no slack to take. A springless Dana 60 high steer system is simpler, has fewer failure points, and provides better steering feel.
Precision Machining Matters
For springless operation to work, the steering arms must have tapered holes that match the GM ends exactly. The 5 hole Dana 60 steering arms in premium kits are CNC-machined to these specifications. Reid compatible Dana 60 arms from quality manufacturers maintain these same tight tolerances. When the taper angles match precisely, the stud seats fully and locks in place with torque alone.
Custom Linkage with Weld Bungs and Jam Nuts
Every vehicle has different axle widths and steering geometries. A one-size-fits-all tie rod rarely fits correctly. GM 1-ton components are designed to work with custom-length linkage.
The DOM Tubing Approach
A Dana 60 high steer without DOM tubes approach gives you control over fitment. The kit provides 7/8-18 weld bungs and jam nuts that thread onto the GM 1-ton ends. You supply DOM tubing cut to your exact axle width. Weld the bungs into the tubing, and you have a custom-length tie rod that fits perfectly. This approach eliminates the compromises of pre-welded tubes.
Thread Specifications
The 7/8-18 thread size is standard on GM 1-ton steering components. The "7/8" is the diameter in inches, and "18" is the threads per inch. This coarse thread is designed for steering applications, providing good strength while resisting cross-threading during assembly. The thread pitch is consistent across all four ends (ES2026R, ES2027L, ES2234L, ES2234R), so any end can thread into any bung.
Jam Nuts for Security
Jam nuts lock the adjustment in place once the toe is set. Unlike simple lock washers or thread-locking compounds, a properly tightened jam nut provides positive mechanical locking that will not vibrate loose on the trail. The jam nut tightens against the end, creating a friction lock that resists rotation. This is the same method used on factory steering linkages.
Bronze Bushings: The Foundation of Good Steering
Steering ends are only half the equation. The kingpin bushings determine how smoothly and precisely the knuckles rotate. GM 1-ton ends cannot compensate for sloppy kingpin fitment.
The Problem with Plastic Bushings
Factory kingpin bushings are often nylon or other plastics. These wear quickly, introducing play that makes precise steering impossible. Worn bushings also contribute to death wobble. Even the strongest GM 1-ton ends will feel loose if the kingpin bushings are worn.
The Bronze Solution
A Dana 60 bronze bushing high steer kit replaces plastic bushings with oil-impregnated bronze. Bronze maintains tight tolerances for hundreds of thousands of miles and provides smoother rotation than plastic. When combined with GM 1 ton steering kit components, bronze bushings create a steering system that is both precise and durable. The bronze material also self-lubricates, reducing maintenance requirements.
Complete Kit Components for GM 1-Ton Steering
A complete steering kit with GM 1-ton components includes everything needed for a full high steer crossover conversion.

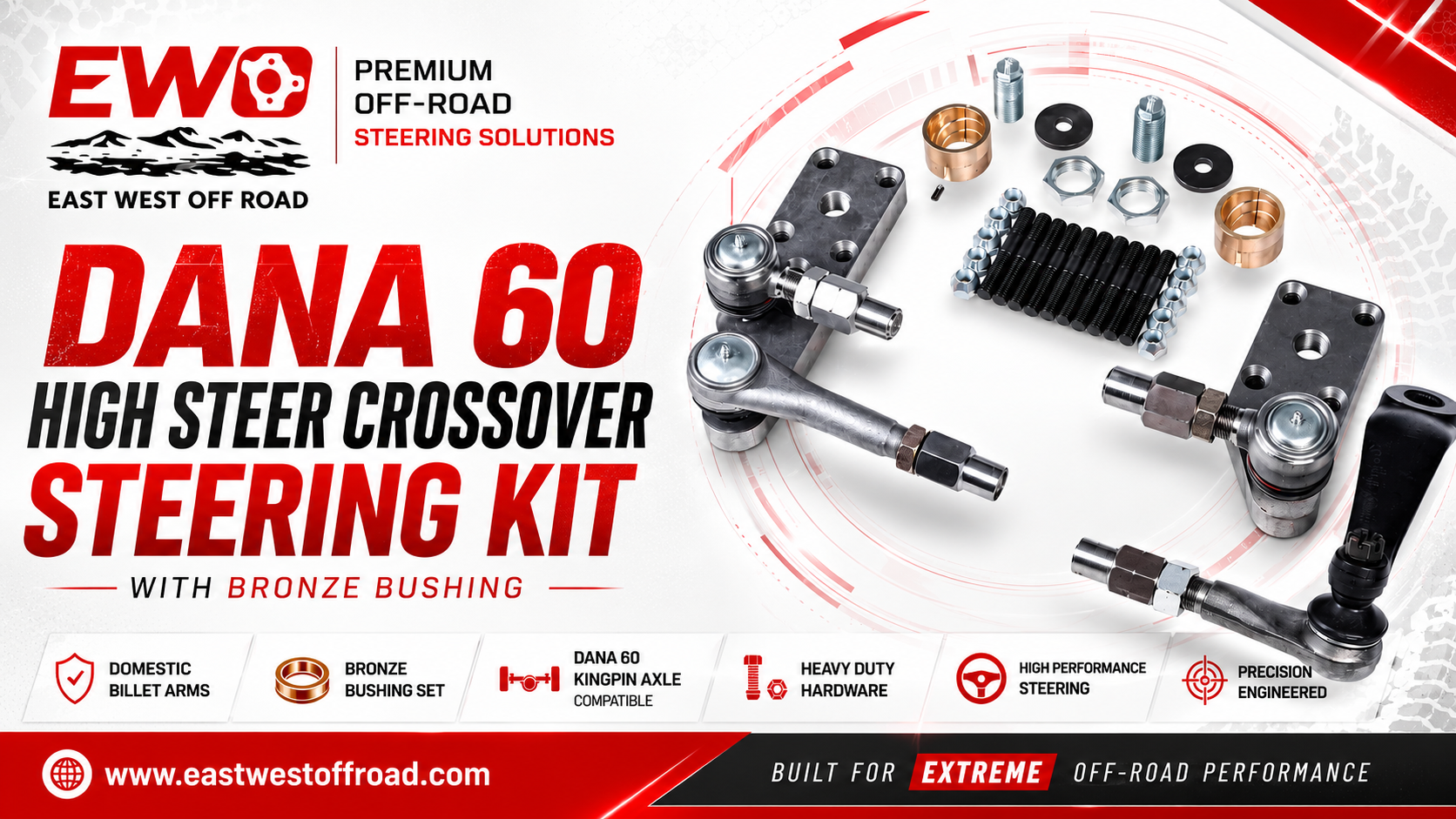

What's Included in the East West Offroad Kit
- Driver and passenger billet Dana 60 steering arms (1.25 inch thick, 5-hole pattern)
- ES2026R drag link kit component (right-hand thread)
- ES2027L drag link end (left-hand thread)
- ES2234L ES2234R tie rod ends (opposing threads)
- 7/8-18 weld bungs and jam nuts (for custom-length linkage)
- Dana 60 bronze kingpin bushing set with hardware
- All mounting hardware (tapered nuts, grease fittings, spacers)
What You Supply
- DOM tubing for tie rod and drag link (cut to your specific axle width)
- Welding services for the bungs
- Basic installation tools
Why Choose the East West Offroad GM 1-Ton Based Kit
The East West Offroad Dana 60 kit is built around genuine heavy-duty components and American manufacturing.
USA-Made Billet Components
The billet steering arms are machined in the USA from domestic steel. The 7/8-18 weld bungs and jam nuts are also USA-made. The GM 1 ton steering kit components are genuine heavy-duty ends, not imported copies. Every part is held to strict quality standards.
Complete Integration
Everything in the kit is designed to work together. The tapered holes in the arms match the GM ends precisely. The bronze bushings fit the kingpins correctly. The hardware is all included. You do not have to source additional parts or adapters.
Application-Specific Design
This is not a universal kit that sort-of fits. It is designed specifically for Dana 60 kingpin axles, with the correct arm heights, taper angles, and hardware specifications. The arms are optimized for crossover steering geometry, with the passenger-side arm positioned for proper drag link angle.
Frequently Asked Questions (FAQs)
Q: What vehicles originally used GM 1-ton steering components?
A: GM 1-ton trucks (3500 series) from the 1970s through early 2000s used these components. The ES2026R, ES2027L, ES2234L, and ES2234R ends are original equipment on many of these vehicles.
Q: Are all GM 1-ton steering ends the same?
A: No. There are variations in stud length, taper angle, and thread direction. The ES2026R, ES2027L, ES2234L, and ES2234R are the specific ends designed for steering linkage applications. Always verify part numbers.
Q: Will GM 1-ton ends work with my Dana 60 knuckles?
A: Yes, when used with the correct steering arms. Billet Dana 60 steering arms are machined with tapered holes that accept GM 1-ton ends. The arms bolt to Dana 60 kingpin knuckles.
Q: What is the advantage of 7/8-inch studs?
A: The 7/8-inch studs on GM 1 ton steering kit components are significantly stronger than the 5/8-inch or 3/4-inch studs found on lighter-duty components. This extra strength is essential for vehicles with oversized tires or heavy towing duty.
Q: Do I need to run springs with GM 1-ton ends?
A: No. When used with properly machined steering arms, GM 1-ton ends seat perfectly without springs. A springless Dana 60 high steer system is actually superior, with fewer failure points and better steering feel.
Q: Can I use GM 1-ton ends with Reid knuckles?
A: Absolutely. The 5 hole Dana 60 steering arms that work with GM ends are Reid compatible Dana 60 arms. This combination is very common on high-end builds.
Q: Why does the kit not include DOM tubing?
A: Axle widths vary significantly between GM, Ford, and Dodge Dana 60s. By providing 7/8-18 weld bungs and jam nuts without pre-cut tubes, you can cut DOM tubing to your exact axle width. This ensures perfect fitment.
Q: Are the ES2234L and ES2234R ends the same as each other?
A: No. The "L" and "R" designate left-hand thread and right-hand thread. Using opposing threads allows the tie rod length to be adjusted by rotating the tube.
Q: How do bronze bushings improve steering?
A: A Dana 60 bronze bushing high steer kit replaces worn plastic bushings with oil-impregnated bronze. Bronze maintains tighter tolerances and lasts much longer, providing precise steering and eliminating death wobble.
Q: Is this kit strong enough for 40-inch tires?
A: Yes. The combination of billet Dana 60 steering arms, GM 1 ton steering kit components, and bronze bushings is proven on countless rock crawlers running 40-inch and larger tires. This is an hd crossover steering kit built for extreme use.
Q: Can I buy just the GM 1-ton ends without the full kit?
A: Yes, the ends are available separately. However, the complete East West Offroad Dana 60 kit includes everything needed for a proper installation, including the correctly machined arms, bronze bushings, and hardware.
Q: What thread size are the weld bungs?
A: The 7/8-18 weld bungs and jam nuts have 7/8-inch diameter threads with 18 threads per inch. This matches the thread size on the GM 1-ton steering ends.
Q: Is the kit made in the USA?
A: Yes. The billet arms, weld bungs, and jam nuts are manufactured in the USA. The East West Offroad Dana 60 kit represents American quality and engineering.
