For the discerning off-road builder, the transformation from a stock vehicle to a trail-conquering machine is marked by critical upgrades that address fundamental flaws. In GM and Chevy trucks equipped with the Dana 44 front axle, the most significant of these flaws is the factory steering geometry. Once a suspension lift is added, the stock design doesn't just underperform—it becomes a safety hazard. This guide explains why a complete crossover steering system is the definitive, non-negotiable upgrade for anyone serious about capability, control, and safety on any terrain.
The Inherent Limitation of Factory Dana 44 Steering
The OEM steering design on the Dana 44 is a study in compromise, prioritizing cost-effective assembly over optimal off-road performance. The inverted Y-link configuration ties the drag link and tie rod together at a low point on the passenger-side knuckle. This creates two critical issues when the vehicle is lifted: dangerously steep steering angles that cause bump steer, and a tie rod positioned as a vulnerable target for rocks and obstacles. For enthusiasts engaged in a GM solid axle swap steering project, persisting with this flawed setup undermines the entire build. Achieving true reliability starts with a proper Dana 44 steering correction.
The Components of a Professional-Grade Solution

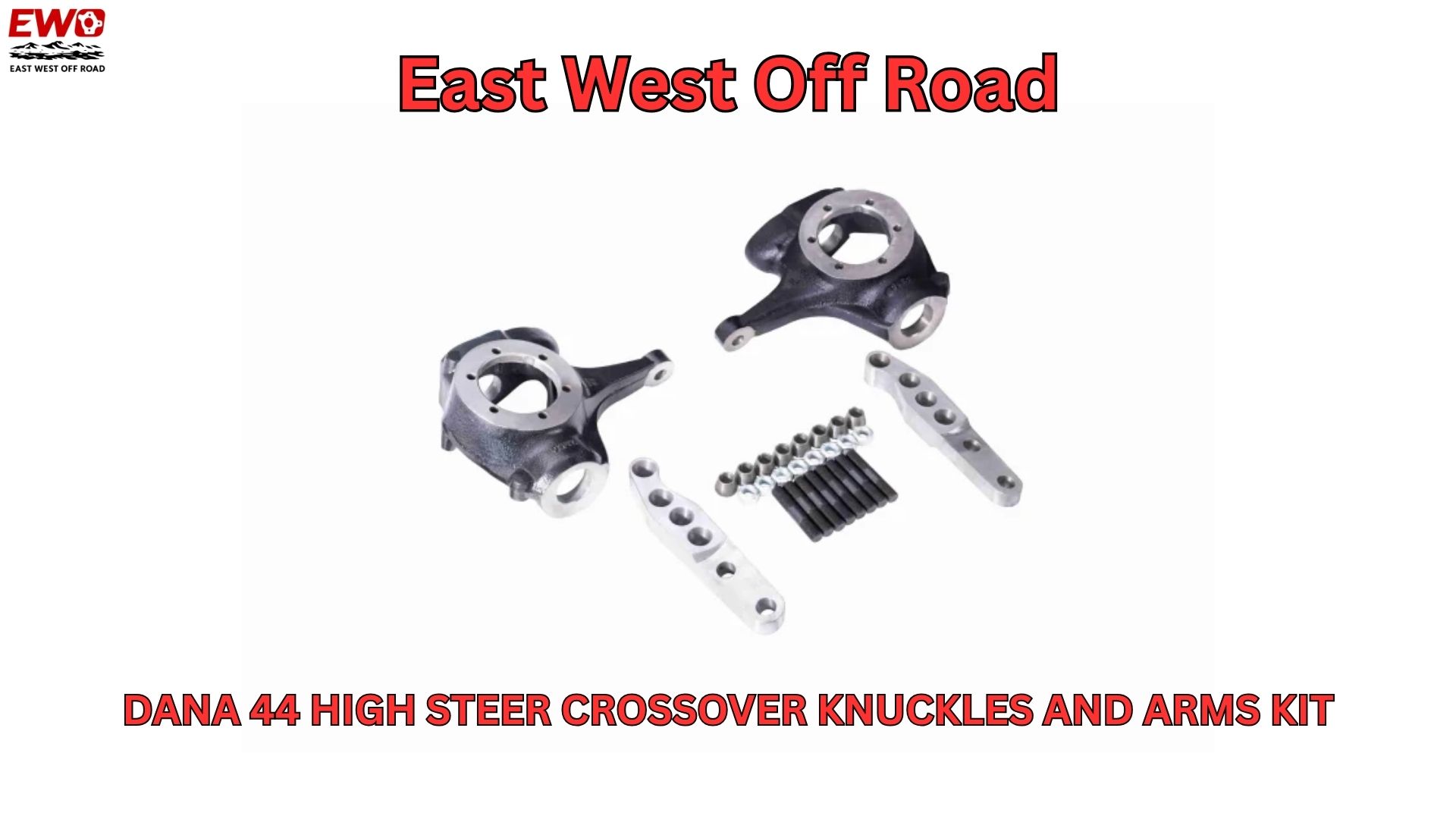

A genuine fix requires replacing the factory steering architecture with a system engineered for strength and precision. This is not a partial upgrade but a complete replacement of key components, best achieved with a comprehensive Dana 44 High Steer Kit. The transformation begins with a Dana 44 Flat Top Knuckles Pair, manufactured in the USA to provide the perfectly machined, flat surface required for high-strength arm mounting. This commitment to USA made off road parts ensures the material quality and tolerances needed for a permanent installation.
The system's core is defined by the 1.25 Inch Billet High Steer Arms. CNC-machined from a solid block of American steel, these billet steering arms are designed to resist the tremendous bending and torsional forces encountered during rock crawling and severe articulation. This level of construction delivers a true 1 ton steering upgrade, elevating the Dana 44's steering robustness to that of a heavier-duty axle and establishing this kit as a premier Reid Racing Knuckles Alternative. The entire assembly is secured with a High Steer Kit with ARP Studs, which uses high-strength 9/16-18 studs and conical washers to prevent loosening and ensure a permanent, rigid connection.
The Tangible Benefits for Your Off-Road Build
Investing in this engineered USA Made Dana 44 Steering Kit yields immediate improvements that are felt every time you get behind the wheel.
- Eliminate Dangerous Bump Steer: The primary goal is to restore predictable, safe handling. By relocating the tie rod to the D44 high steer arms and flattening the drag link angle, steering input is decoupled from suspension movement. This is the only reliable method to eliminate bump steer K5 Blazer and other lifted GM truck owners experience, transforming nervous handling into confident control.
- Gain Essential Ground Clearance: Moving all steering linkage above the axle and springs provides a significant increase in protected clearance. This proactive measure shields critical components from impact damage, preventing what was once the most common cause of steering failure on the trail.
- Achieve Precision and Feedback: The elimination of flex in the rigid billet steering arms creates a direct, communicative link between the steering wheel and the tires. The result is crisp, accurate response—a hallmark of a true 1 Ton Steering Upgrade Dana 44.
- Build a Foundation for the Future: This upgrade creates a durable platform that won't limit your build's evolution. It provides the necessary strength and correct geometry to support larger tires and more extreme modifications with confidence.
Installation Overview and Vehicle Compatibility
A Dana 44 Crossover Steering Installation is a significant project that requires mechanical expertise and proper tools, such as a hydraulic press. This Chevy Dana 44 Crossover Steering Kit is engineered for a direct fit on all applicable GM/Chevy Dana 44 axles. The process involves removing the factory knuckles by pressing out the kingpins and bearings, then installing the new flat-top knuckles and billet arms. It is crucial to understand that this kit provides the core knuckles and arms; the builder must separately source a new tie rod, drag link, and appropriate rod ends or tie rod ends to connect the system. A professional alignment after installation is absolutely essential to set the correct caster and toe for optimal handling and tire wear.
Why East West Offroad Earns Trust
In a market filled with imported alternatives and varying quality standards, East West Offroad distinguishes itself through a transparent commitment to integrity and performance. By manufacturing their Chevy Dana 44 flat top knuckles and key components in the United States and backing them with a lifetime warranty, they demonstrate a level of confidence that matches the demands of the off-road community. Choosing their kit means investing in a product born from practical engineering and a genuine understanding of what fails—and what endures—on the trail.
Frequently Asked Questions
What specific trucks and years is this kit designed for?
This kit is engineered for GM/Chevy vehicles with the passenger-side drop Dana 44 front axle. This includes a wide range of classic models such as the 1973-1991 K5 Blazer and GMC Jimmy, and 1973-1987 K10, K20, V10, and V20 trucks, as well as Suburbans from those eras. Always verify your specific vehicle configuration against the official compatibility chart.
Can I install this with the engine and body still on the frame?
Yes, a full vehicle disassembly is not required. The installation is performed on the front axle. However, you will need sufficient clearance and proper tools to safely remove the front wheels, brake calipers, rotors, and hubs to access the steering knuckles for replacement.
How does this compare to just using a dropped pitman arm?
A dropped pitman arm is a flawed compromise that attempts to address the drag link angle but completely ignores the tie rod angle and clearance issue. It can create additional stress on the steering box and does not solve the fundamental geometry problem. A complete Dana 44 High Steer Kit corrects the issue at its source—the knuckle—delivering a permanent, high-performance solution that improves both safety and clearance.
Transform Your Truck's Steering Today
Stop accepting the limitations and dangers of inadequate factory steering geometry. Upgrade to the engineered solution that provides the precision, protection, and performance your build deserves. Experience the confidence that comes from having absolute control in any situation.
