A JK crossover steering kit is a topic worth understanding for Jeep Wrangler owners planning a steering upgrade for lifted suspension, larger tires, and demanding off-road driving. Steering modifications can change how the drag link transfers steering input, how the tie rod connects the front wheels, and how the linkage moves as the suspension articulates. Selecting the right setup requires understanding the difference between crossover steering, high-steer conversions, and heavy-duty replacement linkage.
For 2007–2018 Jeep Wrangler JK and JKU owners, the right upgrade depends on the vehicle's existing steering arrangement, axle configuration, wheel clearance, and suspension geometry. A properly matched system can provide a stronger steering foundation, but a heavy-duty tie rod and drag link kit should not automatically be considered a complete crossover conversion.
What Is a JK Crossover Steering Kit?
Crossover steering generally refers to a layout in which the drag link travels across the axle from the steering box's pitman arm to a steering knuckle on the opposite side.
The purpose is to establish a steering-linkage arrangement suited to the vehicle's axle and suspension design. Crossover steering is common in various solid-axle 4x4 builds, although the exact hardware and installation requirements vary by platform.
How Crossover Steering Works
When the driver turns the steering wheel, the steering box moves the pitman arm. The drag link transfers this movement to a steering knuckle, while the tie rod connects the steering knuckles so the front wheels turn together.
The routing, attachment points, and angles of these components affect steering response and clearance.
A crossover conversion must therefore be designed around the vehicle rather than assembled from unrelated parts simply because they have similar dimensions.
Crossover Steering vs. High-Steer
These terms are related but describe different features.
- Crossover steering: Changes the routing of the drag link across the axle.
- High-steer: Positions steering linkage higher using compatible arms and mounting points.
- Heavy-duty steering: Uses components designed to provide additional strength or durability compared with the original linkage.
A Jeep can receive stronger steering components without changing its steering architecture. Before buying a JK crossover steering kit, confirm that the product is actually designed for the intended conversion.
Why Upgrade Steering on a Jeep Wrangler JK?
Jeep JK and JKU models are popular for trail driving, rock crawling, and overland builds. Larger tires, lift kits, and additional vehicle accessories can change the loads placed on the steering system.
Improve Steering Linkage Durability
The tie rod and drag link can encounter bending forces and impacts when a vehicle navigates rocks, ruts, and uneven terrain.
A properly engineered heavy-duty replacement system can provide a stronger alternative to factory-sized linkage when selected for the vehicle's intended use.
However, strength depends on more than link diameter. Material, thread engagement, steering ends, mounting points, and overall design all affect the performance of the finished assembly.
Accommodate Modified Vehicles
A lifted Jeep may require a steering setup that works with its changed ride height and suspension geometry.
A suitable upgrade can help provide the required linkage strength and clearance, but the steering box, track bar, knuckles, and other front-end components must also be compatible.
Maintain Predictable Steering Movement
A successful steering upgrade should allow the wheels to turn smoothly without binding or unwanted interference throughout the usable range of steering and suspension movement.
Stronger components alone do not correct worn joints, poor alignment, or incorrect steering geometry.
Heavy-Duty Steering Options for 2007–2018 Jeep JK and JKU
The two-door Wrangler JK and four-door Wrangler Unlimited JKU share the same general front steering architecture, and many aftermarket steering kits are designed for both.

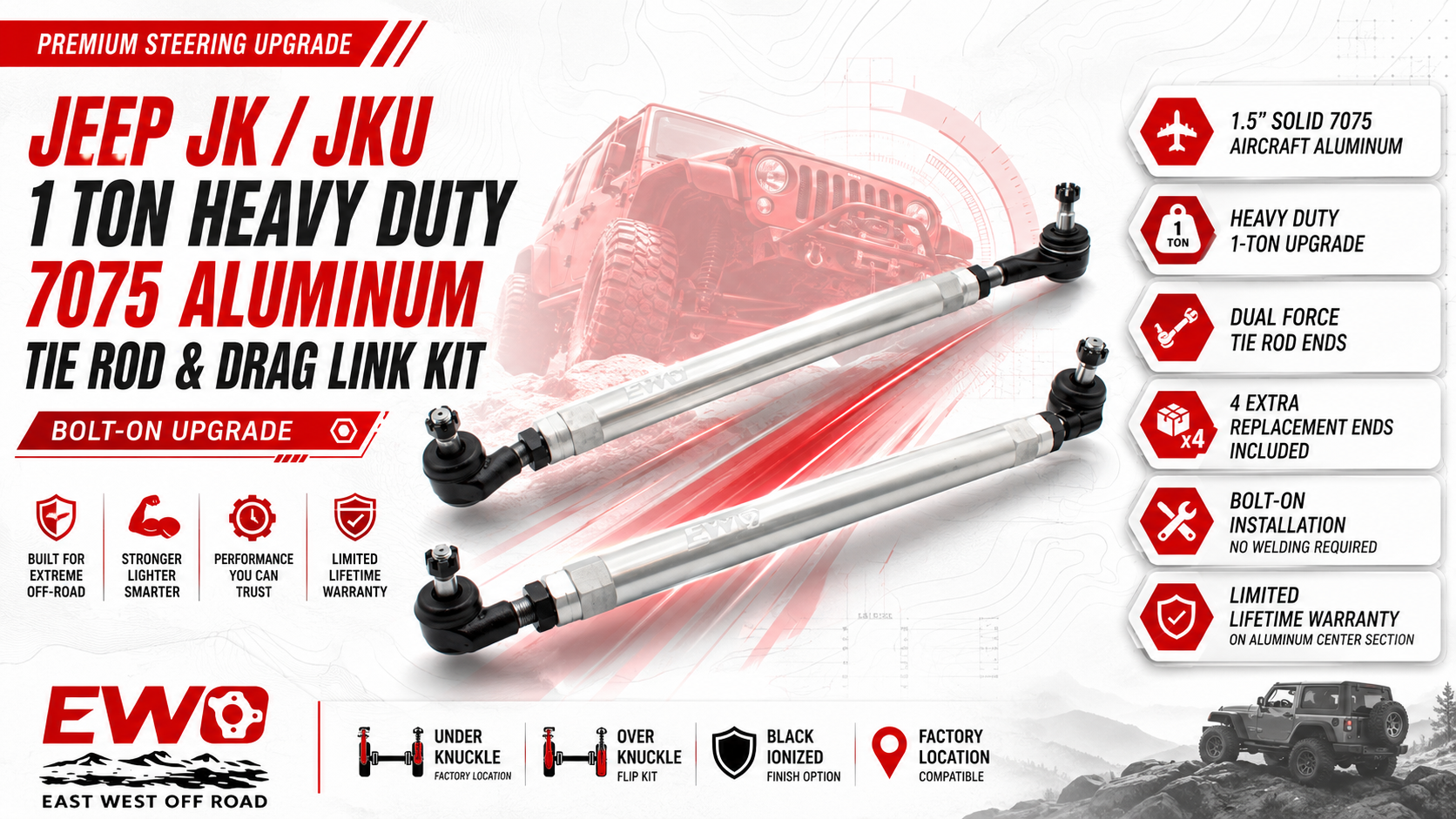

For compatible models, the EWO Jeep JK/JKU 1-ton heavy-duty steering kit is an option for owners looking to upgrade their tie rod and drag link.
This kit uses a 7075 aluminum steering-linkage design. It is a heavy-duty linkage option, but its suitability for a particular crossover or high-steer configuration must be confirmed against the current product specifications.
Verify Vehicle Compatibility
Before ordering, check:
- Jeep model year and JK or JKU configuration
- Front axle and steering-knuckle setup
- Existing steering-linkage arrangement
- Suspension lift height
- Tire size
- Wheel diameter and backspacing
- Steering stabilizer location
- Any previous steering or suspension modifications
These details help determine whether the selected kit fits without requiring incompatible changes.
7075 Aluminum Steering Components
Material selection is an important part of a steering upgrade. Aftermarket steering systems may use steel, chromoly, or high-strength aluminum, each with different characteristics.
7075 aluminum is valued for its high strength-to-weight ratio. In a properly engineered steering component, it can offer substantial strength while reducing weight compared with many steel alternatives.
Advantages of 7075 Aluminum
Depending on the complete design, a 7075 aluminum steering system may offer:
- High strength relative to its weight
- Reduced linkage mass compared with many steel alternatives
- A purpose-built option for modified Jeep applications
- A finished surface that can be maintained according to the manufacturer's recommendations
The alloy alone does not establish the strength of the system. Threaded connections, rod ends, attachment points, and manufacturing quality are equally important.
Why Consider a Complete Tie Rod and Drag Link Kit?
The tie rod and drag link perform different functions, but both contribute to steering control. Upgrading them together can make it easier to match the components and maintain a consistent setup.
For Jeep owners comparing heavy-duty linkage options, the EWO 1-ton 7075 aluminum steering kit provides a vehicle-specific option to evaluate. Confirm that its configuration matches your existing steering architecture before treating it as a crossover conversion.
Steering Geometry and Track-Bar Compatibility
Steering geometry becomes especially important when modifying a lifted solid-axle vehicle. Changing the drag link's position can affect how the steering system moves in relation to the suspension.
Understanding Bump Steer
Bump steer occurs when suspension movement causes unintended changes in wheel direction.
On a lifted Jeep, the drag link and front track bar need to operate through compatible arcs. Their angles, lengths, and mounting positions influence how the axle moves relative to the chassis and how the steering responds.
A crossover or high-steer conversion can change this relationship, so the geometry must be evaluated as part of the modification.
Check the Track Bar and Mounting Brackets
The front track bar locates the axle laterally beneath the vehicle. Its position is closely related to the movement of the axle and steering linkage.
When selecting a different steering arrangement, inspect the track bar, brackets, drag link, and steering knuckles together. Additional geometry-correction components may be required, depending on the specific build.
Do not assume that a crossover steering kit automatically eliminates bump steer or death wobble.
High-Steer and Drag-Link Flip Options
Some lifted Jeep JK builds use a drag-link flip to move the drag link above its original mounting location. This can be related to high-steer modifications, but it is not automatically the same as a complete crossover steering conversion.
When Is a Flip Configuration Appropriate?
A flip configuration may be suitable when the selected components are designed for that mounting position and the resulting steering geometry is compatible with the vehicle.
Consider the following factors:
- Suspension lift height
- Steering-knuckle configuration
- Track-bar geometry
- Wheel and tire clearance
- Steering-arm mounting requirements
- Manufacturer installation instructions
The correct configuration should be chosen based on the complete vehicle setup, not lift height alone.
Wheel Clearance Considerations
Wheel diameter and backspacing affect clearance around the steering arms and linkage. Some aftermarket steering configurations have specific wheel requirements.
Check the product's current fitment information before ordering. If wheel spacers are required, verify the recommended specifications and installation procedures rather than assuming spacers are appropriate for every setup.
How to Select the Right JK Crossover Steering Components
A reliable steering system requires compatible components from the steering box to the knuckles.
Steering Links
The tie rod and drag link should be designed for the intended application and provide the required adjustment range. Their dimensions and construction should be evaluated alongside the loads expected during off-road use.
Steering Ends
Steering ends must match the specified taper, thread, mounting position, and articulation requirements. Incorrectly matched ends can compromise the connection even when the center links are strong.
Mounting Hardware
Steering arms and other mounting points require the correct hardware and installation procedure. Follow the manufacturer's torque specifications and inspection guidance.
Complete System Compatibility
Before purchasing, confirm whether the kit includes the parts needed for the intended conversion or whether additional knuckles, steering arms, brackets, or linkage components are required.
A heavy-duty tie rod and drag link replacement may be sufficient for one Jeep, while another build may require a more extensive steering conversion.
Installation and Safety Checklist
Steering components are safety-critical, so installation should follow the product instructions and applicable vehicle service procedures.
Inspect Full Steering and Suspension Travel
Turn the steering from lock to lock and check for interference between the linkage and:
- Wheels and tires
- Front axle and differential housing
- Track bar and brackets
- Springs and shocks
- Sway bar and suspension components
- Frame and steering box
- Steering stabilizer
- Brake hoses and nearby hardware
Repeat the checks with the suspension compressed and extended. Clearance at ride height alone is not enough.
Verify Alignment and Fasteners
After installation, check toe, steering-wheel position, and steering movement. Tighten all fasteners to the manufacturer's specified torque and follow the recommended inspection schedule.
If the steering binds, feels loose, or behaves unexpectedly, do not continue driving until the problem has been identified and corrected. Have a qualified technician inspect the installation if there is uncertainty about fitment or geometry.
Common Mistakes When Buying a JK Crossover Steering Kit
Confusing heavy-duty linkage with crossover steering: A replacement tie rod and drag link kit may retain the original steering arrangement.
Ignoring suspension geometry: Changing the drag-link position can affect its relationship with the track bar.
Choosing components by size alone: A larger steering link is not automatically compatible with every axle or knuckle.
Overlooking wheel clearance: Wheel dimensions can determine whether the steering linkage fits properly.
Skipping full-travel checks: A component that clears at normal ride height may contact the suspension or tire during articulation.
Expecting the kit to fix every steering problem: Worn joints, loose hardware, alignment issues, and damaged suspension components require separate diagnosis.
Frequently Asked Questions (FAQs)
What is a JK crossover steering kit?
A JK crossover steering kit is designed to change the steering-linkage routing so the drag link travels across the axle to a steering knuckle on the opposite side. The exact components depend on the conversion design and vehicle configuration.
Does a heavy-duty Jeep JK steering kit automatically provide crossover steering?
No. Some kits replace the tie rod and drag link while retaining the existing steering architecture. Confirm the product's design before ordering.
What years does the EWO JK/JKU steering kit fit?
The product discussed here is listed for 2007–2018 Jeep Wrangler JK and JKU models. Verify the current product listing and your specific vehicle configuration before purchase.
Is 7075 aluminum suitable for off-road steering?
A properly engineered 7075 aluminum steering component can offer high strength relative to its weight. Suitability depends on the complete design, connections, fitment, and intended use.
Does crossover steering eliminate bump steer?
No. Bump steer depends on steering and suspension geometry. The drag link, track bar, and suspension must work together through the full range of movement.
Will a crossover steering kit fix death wobble?
Not automatically. Death wobble can involve worn joints, loose hardware, track-bar problems, tires, alignment, and suspension geometry. The underlying cause should be diagnosed before selecting replacement parts.
Do I need a drag-link flip for a lifted Jeep JK?
Not every lifted Jeep requires a flip. The appropriate setup depends on lift height, steering geometry, wheel clearance, and the selected components.
What should I check after installation?
Inspect fastener torque, alignment, steering-wheel position, lock-to-lock movement, wheel and tire clearance, track-bar clearance, and interference throughout suspension travel.
Final Thoughts
A JK crossover steering kit should be selected according to the steering arrangement your Jeep actually needs. Crossover steering changes linkage routing, high-steer changes linkage position, and heavy-duty steering kits focus on component strength. Understanding these differences helps avoid purchasing parts that do not match the intended modification.
For compatible 2007–2018 Jeep Wrangler JK and JKU builds, the EWO 1-ton 7075 aluminum tie rod and drag link kit is one heavy-duty linkage option to compare. Confirm its fitment and configuration, inspect the complete steering geometry, and follow the manufacturer's installation requirements before returning the Jeep to road or trail use.
