Jeep Wrangler heavy duty steering is an important upgrade to consider when your vehicle is equipped with larger tires, a suspension lift, or modifications designed for challenging off-road terrain. Whether you drive a two-door Jeep Wrangler JK or a four-door Wrangler Unlimited JKU, the steering system must remain dependable when navigating highways, rocky trails, tight obstacles, and uneven surfaces.
The factory steering linkage is designed around the Wrangler's original configuration. As your build evolves with oversized tires, heavier wheels, suspension upgrades, and additional off-road equipment, steering components can face increasing loads and greater exposure to trail damage.
For Wrangler owners seeking an upgraded steering system, the tie rod and drag link are two of the most important components to evaluate.
A properly designed heavy-duty steering setup can provide more substantial linkage, serviceable steering ends, and configurations suited to certain lifted applications.

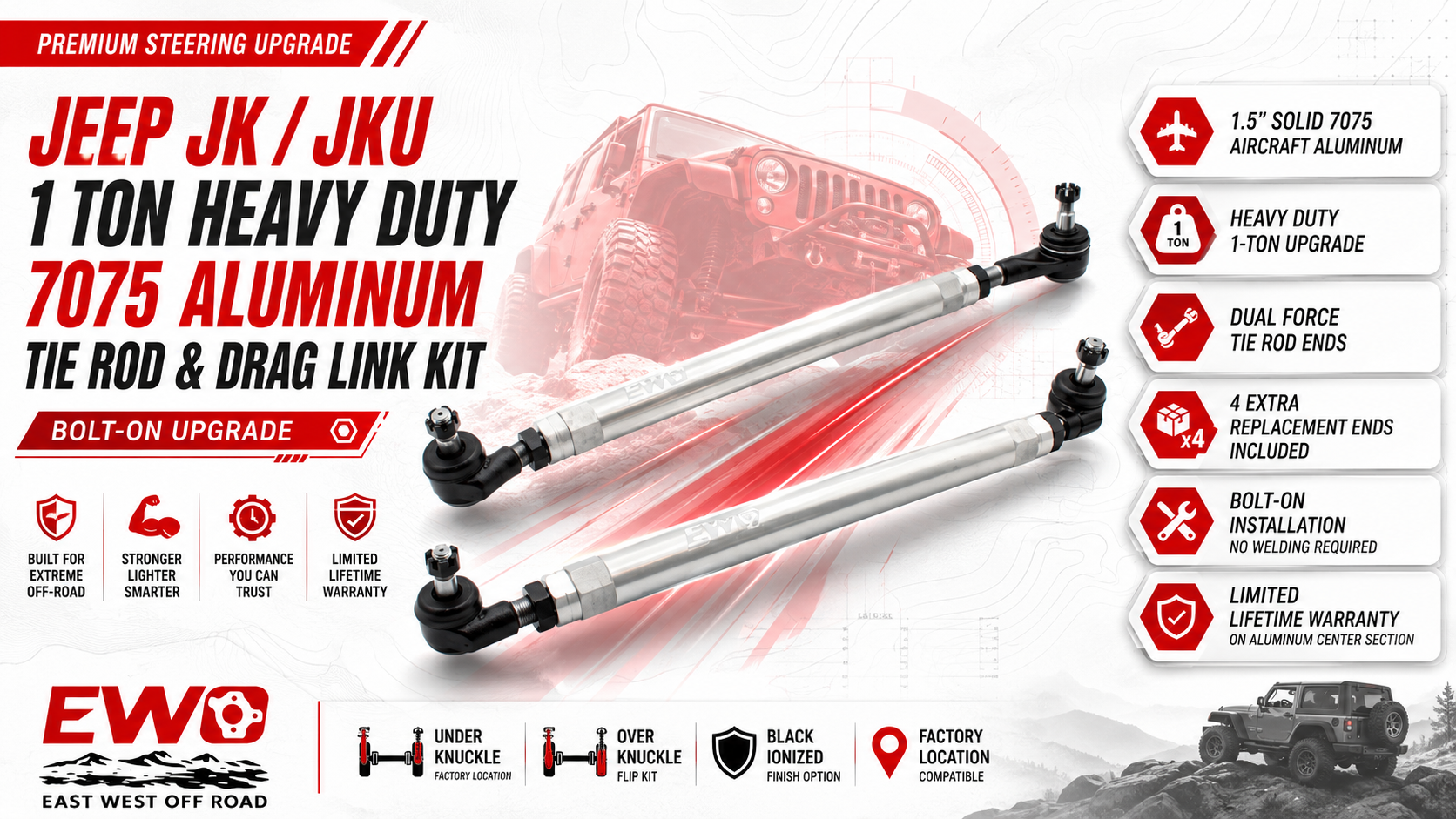

The East West Off Road 1-Ton Heavy Duty 7075 Aluminum Tie Rod & Drag Link Steering Kit is designed for 2007–2018 Jeep Wrangler JK and JKU applications. Featuring solid 1.5-inch 7075 aluminum steering bars, greaseable Dual Force steering ends, and additional replacement joints, this system offers an alternative to conventional factory-style steering components.
In this guide, we'll explore the benefits of heavy-duty steering, explain the differences between available steering upgrades, examine the EWO 1-ton kit, and help you determine which setup is appropriate for your Wrangler.
Why Jeep Wrangler Owners Upgrade to Heavy-Duty Steering
The Jeep Wrangler is designed for off-road capability, but many enthusiasts modify their vehicles far beyond their original specifications.
Suspension lifts, larger tires, aftermarket axles, and trail equipment can change how the steering system operates.
A heavy-duty steering upgrade becomes particularly relevant when those changes place greater demands on the tie rod, drag link, and related front-end components.
Larger Tires Can Increase Steering Loads
Oversized tires are one of the most popular Wrangler upgrades.
Many off-road builds run 35-inch or 37-inch tires, while more extensively modified vehicles may use even larger setups.
Larger tires can increase steering demands, particularly when turning at low speeds or maneuvering against rocks and trail obstacles.
Wheel offset, tire weight, tread width, and vehicle loading also influence these forces.
A heavy-duty steering assembly may be worth considering when your tire-and-wheel setup significantly changes the demands placed on the front end.
Off-Road Trails Expose Steering Linkage to Damage
During rock crawling, the front steering components may encounter rocks, ledges, and uneven terrain.
The tie rod is particularly exposed because of its position near the front axle.
A severe impact can deform steering linkage or damage its joints.
A properly selected heavy-duty system can be part of preparing a Wrangler for demanding conditions, although no steering component is immune to damage.
Lifted Suspensions Require Proper Steering Geometry
Suspension lifts change the relative positions of the front axle, chassis, drag link, and track bar.
These changes can influence steering angles and suspension movement.
A heavy-duty steering kit must therefore be compatible with the vehicle's suspension geometry.
Installing larger steering components without checking their mounting positions can create problems rather than solve them.
Worn Factory Steering Components May Need Replacement
Tie rod ends and drag link ends contain articulated joints that experience wear during normal operation.
Damaged boots, excessive movement, bent linkage, and loose connections can affect steering performance.
When several factory steering components require replacement, upgrading to a complete heavy-duty system may be a practical option.
Understanding the Jeep Wrangler Steering System
Before upgrading your steering, it helps to understand how the major components work together.
Tie Rod: Connecting the Front Wheels
The tie rod connects the front steering knuckles and coordinates their movement.
It also influences front-wheel toe alignment.
If the tie rod becomes bent or its ends develop excessive play, the relationship between the front wheels can change.
This may contribute to tire wear or undesirable steering behavior.
Drag Link: Transferring Steering Input
The drag link transfers steering input from the pitman arm toward the passenger-side steering knuckle.
It plays an important role in the Jeep's steering response and steering-wheel centering.
Its mounting position also affects the relationship between the steering system and the front suspension.
Track Bar: Controlling Axle Movement
The front track bar locates the axle laterally beneath the vehicle.
Its geometry works closely with the drag link's geometry as the suspension moves.
A worn or incorrectly configured track bar can affect steering behavior even when the tie rod and drag link are in good condition.
Steering Ends: The Critical Connections
Tie rod ends and drag link ends connect steering bars to their mounting points.
These joints must accommodate movement while maintaining secure connections.
Their design, material, articulation, and maintenance requirements are important considerations in a heavy-duty steering system.
How to Know If Your Jeep Needs a Steering Upgrade
Not every Wrangler requires a 1-ton steering kit.
The right decision depends on the vehicle's condition, modifications, and intended use.
Common Signs of Steering Problems
Symptoms that deserve inspection include:
- Excessive steering-wheel play.
- Loose or wandering steering.
- Clunking from steering connections.
- Visible tie rod or drag link damage.
- Uneven front-tire wear.
- Worn steering-end boots.
- Steering behavior that changes after a suspension lift.
- Excessive movement in steering joints.
These symptoms can have several possible causes.
For example, wandering steering may involve the tie rod ends, track bar, steering box, alignment, or suspension bushings.
A professional inspection should identify the actual issue before you purchase replacement parts.
When a Factory-Style Replacement May Be Enough
If your Wrangler is mostly stock and only one steering component is worn, a compatible factory-style replacement may be sufficient.
A complete heavy-duty upgrade becomes more relevant when the Jeep has substantial modifications or when multiple steering components require replacement.
What Makes a 1-Ton Jeep Steering Kit Heavy-Duty?
The term "1-ton" is commonly used in the aftermarket to describe certain heavy-duty steering-linkage designs.
However, it is not a standardized rating that guarantees a particular load capacity for the complete assembly.
Different manufacturers may use different steering-bar materials, joint dimensions, and mounting designs while advertising products in this category.
Heavy-Duty Steering vs. Factory Steering
Feature
Factory-Style Steering
Heavy-Duty 1-Ton Steering
Intended application
Original vehicle configuration
Modified and demanding applications
Tie rod construction
Factory-specific design
Upgraded designs available
Drag link construction
Factory-style linkage
Heavy-duty options available
Steering ends
OEM-style joints
Larger or specialized joint designs
Steering configurations
Factory mounting
Factory and flip options on some kits
Replacement parts
Product-dependent
Product-dependent
Installation
Factory-style procedures
May require extra fitment checks
The most useful way to compare steering systems is to evaluate their documented components rather than relying on the 1-ton designation alone.
Why Replace Both the Tie Rod and Drag Link?
A complete steering kit can make sense when both primary links are worn, damaged, or being upgraded as part of a larger front-end project.
Instead of selecting separate components that may have different mounting requirements, a matched kit allows you to evaluate the linkage as a coordinated system.
For compatible Wrangler JK and JKU builds, a Jeep JK tie rod upgrade using a complete tie rod and drag link package can be a practical approach to replacing the main factory steering links.
East West Off Road 1-Ton Heavy-Duty Steering Kit
East West Off Road offers the 07–18 Jeep JK / JKU 1 Ton Heavy Duty 7075 Aluminum Tie Rod & Drag Link Steering Kit, item number E30112.
This kit is designed for owners looking to upgrade their Wrangler's main steering linkage with solid aluminum components and heavy-duty steering ends.
EWO E30112 Product Specifications
Product Detail
Specifications
Product
1-Ton Heavy Duty Tie Rod & Drag Link Steering Kit
Brand
East West Off Road
Item Number
E30112
Vehicle Fitment
2007–2018 Jeep Wrangler JK / JKU
Steering Link Material
7075 aluminum
Steering Bar Construction
Solid 1.5-inch aluminum center sections
Main Components
Tie rod and drag link
Steering Ends
Dual Force greaseable 1-ton ends
Primary Steering Ends
Four
Additional Replacement Ends
Four
Adjustment Features
Hex-style ends with right- and left-hand threads
Finish Choices
Aluminum or black anodized
Steering Configurations
Under the knuckle or over the knuckle
Tie Rod End Warranty
Advertised two-year unlimited warranty
Aluminum Center Section Warranty
Advertised limited lifetime warranty
The product combines several features that are relevant to modified Wrangler builds.
Its solid aluminum construction, greaseable steering ends, and additional replacement components make it worth evaluating for drivers who place significant demands on their steering systems.
The actual warranty coverage is governed by EWO's current written terms and exclusions.
Why Solid 7075 Aluminum Is Used in Premium Steering Kits
One of the standout features of the EWO E30112 is its solid 7075 aluminum construction.
7075 is a high-strength aluminum alloy used in demanding engineering applications.
It is often described as aircraft-grade aluminum because of its use in certain aerospace components.
For an off-road steering system, its properties offer an alternative to conventional steel linkage.
Solid 1.5-Inch Steering Bars
The EWO kit uses solid 1.5-inch 7075 aluminum center sections.
This differs from many conventional tubular steering-link designs.
The material and dimensions are important, but they are not the only factors determining performance.
Joint attachments, thread engagement, component geometry, material condition, and operating loads all affect the complete assembly.
Can Aluminum Steering Bars Flex and Recover?
Some appropriately engineered aluminum steering bars can undergo limited elastic deformation.
This means the component may temporarily change shape under load and return toward its original shape when the load is removed.
This characteristic is frequently discussed in the off-road aftermarket.
However, it is important not to confuse elastic deformation with unlimited impact resistance.
An aluminum steering bar can still bend permanently, crack, or fail when subjected to sufficiently severe loads.
7075 Aluminum vs. Steel Steering Components
Comparison
7075 Aluminum
Conventional Steel
Material
High-strength aluminum alloy
Steel grade varies
Weight
Lower density than steel
Higher density than aluminum
Construction
Solid or engineered profiles
Tubular or solid designs
Strength
Depends on alloy temper and design
Depends on steel grade and design
Corrosion
Does not develop red rust like carbon steel
May require protective coatings
Impact behavior
Depends on design and applied loads
Depends on design and applied loads
Application
Product-specific
Product-specific
The choice between aluminum and steel should be based on the actual system specifications and your intended use.
Neither material is automatically the best option for every Jeep.
Dual Force Steering Ends: An Important Part of the Upgrade
The steering bars are only one part of a complete heavy-duty system.
The steering ends connect those bars to the Jeep and allow the articulation required during steering and suspension movement.
East West Off Road equips the E30112 with Dual Force steering ends.
4130 Steel Bodies and 4340 Hardened Ball Pins
According to EWO's product specifications, Dual Force steering ends use 4130 steel bodies and 4340 hardened-steel ball pins.
EWO compares this construction with conventional steering ends using 1540 steel bodies and 4130 steel ball pins.
These material differences are relevant to the manufacturer's steering-end design.
However, the performance of a completed joint also depends on manufacturing, heat treatment, fitment, and operating conditions.
Manufacturer-Advertised Durability
East West Off Road advertises approximately 40% greater stress-load capability and twice the service life for its Dual Force ends compared with the conventional design used in its reference.
These are manufacturer-provided performance claims rather than independently verified comparative test results.
Actual service life depends on driving conditions, lubrication, contamination, and maintenance.
Greaseable Steering Ends
The kit uses greaseable steering ends.
This allows lubrication through designated service points according to the manufacturer's recommendations.
For trail-driven Jeeps, regular joint inspection is especially important.
Check for torn boots, contamination, looseness, and unusual movement.
Four Extra Replacement Steering Ends
A useful feature of the EWO package is the inclusion of four additional replacement steering ends.
These are provided beyond the four primary ends in the steering assembly.
Having compatible replacement joints available can be helpful for future maintenance, especially for owners who frequently use their Jeeps off-road.
It does not eliminate the need for regular inspections.
Under-the-Knuckle vs. Over-the-Knuckle Steering
A heavy-duty steering system must match the vehicle's suspension setup.
One of the most important decisions when ordering EWO E30112 is selecting the correct drag link configuration.
Factory Location / Under the Knuckle
The factory-location configuration uses the lower steering-knuckle mounting arrangement.
According to EWO's product guidance, this option is intended for Jeeps with less than 3 inches of suspension lift.
This is generally the configuration to evaluate for stock-height Wranglers or vehicles with modest lifts.
However, exact fitment still depends on the steering knuckles, axle, and suspension components.
Flip Kit / Over the Knuckle
The over-the-knuckle configuration relocates the drag link connection to a higher position on the steering knuckle when installed as part of a compatible steering arrangement.
EWO recommends the flip configuration for vehicles with more than 3 inches of lift.
A correctly configured drag link flip can be part of maintaining appropriate steering geometry on a taller lifted Wrangler.
However, a flip setup may require additional installation components or mounting modifications.
Steering Configuration Guide
Wrangler Setup
EWO Configuration to Evaluate
What to Verify
Stock-height JK/JKU
Factory Location
Axle and wheel clearance
Lift below 3 inches
Under the Knuckle
Steering geometry
Lift above 3 inches
Over the Knuckle / Flip Kit
Track bar geometry and required hardware
Exactly 3-inch lift
Confirm with EWO
Manufacturer's boundary recommendation
Modified axle or suspension
Confirm before ordering
Mounting points and compatibility
The correct steering configuration should be chosen according to the vehicle's actual geometry, not appearance alone.
Why Track Bar Geometry Matters on Lifted Wranglers
A suspension lift changes the position of the front axle relative to the chassis.
The drag link and track bar must work together as the suspension moves.
What Is Bump Steer?
Bump steer occurs when suspension movement creates unwanted steering input.
If the track bar and drag link follow significantly different movement paths, the steering may react as the axle moves through its suspension travel.
This can affect driving confidence and predictability.
Why a Drag Link Flip Requires Planning
Moving the drag link to a higher mounting position changes its angle.
In some steering configurations, a compatible raised track bar bracket or other correction may be necessary.
The exact requirement depends on the vehicle's suspension and steering design.
A drag link flip should never be installed without considering the track bar arrangement.
Should You Install a Drop Pitman Arm?
A drop pitman arm changes the steering connection at the steering-box end.
It is not a universal solution for lifted Wrangler steering.
Installing one without properly considering track bar geometry can create additional problems.
The steering system should be evaluated as a complete assembly.
Four Available EWO Steering Configurations
East West Off Road offers the 1-ton steering kit with two finish choices and two steering layouts.
Aluminum Finish — Factory Location
This option combines the natural aluminum appearance with the under-the-knuckle configuration.
It is intended for applications that fall within EWO's factory-location lift recommendations.
Aluminum Finish — Flip Kit
This option uses the aluminum finish with the over-the-knuckle steering arrangement.
It is intended for compatible lifted applications requiring the flip configuration.
Black Anodized — Factory Location
This option provides a black finish with the factory-location steering arrangement.
The finish choice does not replace the need to verify compatibility.
Black Anodized — Flip Kit
This version combines the black anodized appearance with the over-the-knuckle configuration.
It is intended for compatible lifted Wrangler applications.
Choosing the Right Variation
Select the steering configuration first, based on actual fitment and suspension geometry.
Then select the preferred finish.
A finish choice should never determine the mounting arrangement used on the vehicle.
Critical Wheel and Tire Fitment Requirements
Heavy-duty steering ends may be larger than the original factory components.
This can create important wheel-clearance considerations.
EWO identifies specific requirements for the E30112 steering kit.
Minimum 17-Inch Wheels
The kit requires 17-inch wheels according to the supplied product specifications.
Smaller wheels may not provide enough clearance for the heavy-duty steering ends.
Wheel Backspacing of 4.75 Inches or Less
The product requires 4.75 inches of backspacing or less.
Backspacing affects the distance between the wheel and nearby steering components.
Always verify the actual wheel dimensions before ordering.
Factory Rubicon and AEV Wheels
EWO specifies that factory Rubicon and AEV wheels require 1.5-inch wheel spacers for this steering setup.
The spacers must be compatible with the vehicle's wheel, hub, and mounting hardware.
Proper installation is essential.
Steering Stabilizer Location
According to the supplied EWO requirements, the steering stabilizer must remain in its factory location.
If your Jeep has an aftermarket stabilizer relocation setup, confirm compatibility before purchasing.
Fitment Checklist
Fitment Item
EWO Product Requirement
Vehicle
2007–2018 Jeep Wrangler JK / JKU
Wheel Diameter
17 inches
Wheel Backspacing
4.75 inches or less
Factory Rubicon Wheels
1.5-inch spacers required
AEV Wheels
1.5-inch spacers required
Steering Stabilizer
Factory location
Lift Below 3 Inches
Under-the-knuckle option
Lift Above 3 Inches
Flip-kit option
Front Axle
Verify steering-knuckle compatibility
Wheel clearance must be checked with the steering turned through its operating range.
Also inspect the nearby brake components, differential cover, suspension brackets, and stabilizer hardware.
Will the EWO Kit Fit Dana 30 and Dana 44 Axles?
The Wrangler JK platform has been offered with different front-axle configurations.
Some owners also install aftermarket axles or steering knuckles.
These details affect steering-linkage fitment.
Dana 30 Front Axle
For a Jeep equipped with a Dana 30 front axle, confirm the steering-knuckle arrangement and mounting taper.
The axle designation alone does not guarantee compatibility with every aftermarket steering system.
Dana 44 Front Axle
The same principle applies to a Dana 44 front axle.
Verify the specific steering-knuckle mounting points, joint fitment, and component clearance.
Aftermarket Axles and Knuckles
Custom front axles, high-steer knuckles, or previous steering modifications can change fitment requirements.
If your Wrangler has these modifications, contact EWO with the exact configuration before ordering.
Is the EWO Steering Kit a Bolt-On Upgrade?
EWO markets its E30112 as a bolt-on heavy-duty steering upgrade.
For compatible applications, the kit is intended to replace the primary steering linkage without welding.
However, installation requirements may vary between the factory-location and flip configurations.
Some applications may require basic drilling, reaming, or additional modifications.
Factory-Location Installation
The under-the-knuckle configuration retains a factory-style steering connection location.
However, the correct joint taper, mounting hardware, and fitment requirements must still be confirmed.
Flip-Kit Installation
An over-the-knuckle arrangement changes the drag link connection.
This may require specific steering-end installation procedures, mounting modifications, or track bar-related changes.
Do not assume that every flip kit can be installed without additional work.
Why Professional Installation Matters
Steering components directly affect vehicle control.
Incorrect joint engagement, loose hardware, improper clearance, or poor alignment can create unsafe conditions.
Qualified professional installation is recommended when the owner lacks experience with steering-system service or modified suspension geometry.
Adjustable Steering Linkage: Hex Ends and Opposite-Hand Threads
The EWO E30112 incorporates hex-style adjustment features and right- and left-hand threaded ends.
These features are useful during steering-link adjustments.
Why Thread Direction Matters
Opposite-hand threaded ends can allow effective linkage length to be adjusted through controlled rotation of the appropriate steering component.
This can simplify certain adjustment procedures.
However, the exact method must follow the manufacturer's instructions.
Hex-Style Adjustment Features
Hex-style ends provide a surface for using an appropriate wrench.
This can help technicians make controlled adjustments during installation and alignment.
Tie Rod vs. Drag Link Adjustment
The tie rod influences front-wheel toe.
The drag link is involved in steering-wheel centering.
These adjustments are different and should not be confused.
A professional front-end alignment is recommended after replacing major steering components.
Jeep Wrangler Heavy-Duty Steering for Different Builds
A daily-driven Wrangler and a dedicated rock crawler may require different steering considerations.
Daily-Driven Jeep Wrangler JK
For a daily driver, correct alignment, healthy steering joints, and predictable highway handling are priorities.
A heavy-duty system may be appropriate when the vehicle is modified or when original components require replacement.
However, a larger steering bar alone does not guarantee improved road manners.
Lifted Wrangler Unlimited JKU
A lifted JKU may combine family transportation, road trips, overlanding, and off-road driving.
These vehicles need steering components compatible with the suspension height, front axle, and wheel-and-tire setup.
A Jeep JKU drag link kit can be considered as part of a complete steering upgrade when the factory linkage is worn or the vehicle's modifications call for different components.
Rock-Crawling Wrangler
Rock crawling can place significant loads on steering components when tires push against rocks and trail obstacles.
A heavy-duty steering system may be worth including in a properly planned rock-crawling build.
However, the axle, ball joints, track bar, and steering box must also be suitable for the application.
Overlanding Jeep Build
Overlanding vehicles frequently travel long distances while carrying additional equipment.
For these builds, correct fitment, serviceability, and dependable steering components are particularly important.
Access to compatible spare steering ends can support future maintenance planning.
1-Ton vs. 2.5-Ton Heavy-Duty Jeep Steering
Wrangler owners often compare 1-ton and 2.5-ton steering systems before purchasing.
Both terms are commonly used as aftermarket product categories rather than standardized strength ratings.
Comparing the Options
Factor
1-Ton Steering
2.5-Ton Steering
Product category
Heavy-duty aftermarket steering
Heavy-duty aftermarket steering
Steering bar design
Manufacturer-specific
Manufacturer-specific
Joint construction
Varies by product
Varies by product
Material options
Steel or aluminum
Steel or aluminum
Intended use
Modified Jeeps and trail applications
Modified Jeeps and demanding applications
Wheel requirements
Kit-specific
Kit-specific
Lift compatibility
Configuration-dependent
Configuration-dependent
A 2.5-ton label does not automatically mean a product is the correct choice for every Wrangler.
For many JK and JKU owners, a properly engineered 1-ton system may be worth evaluating.
The correct option depends on the vehicle's modifications and the manufacturer's actual specifications.
Can Heavy-Duty Steering Fix Jeep Death Wobble?
Jeep death wobble is a severe front-end oscillation that may involve worn steering components, loose suspension connections, wheel issues, or alignment problems.
A heavy-duty steering kit can replace damaged linkage that contributes to a problem.
However, it is not a guaranteed cure.
Common Components That Require Inspection
A complete diagnosis may involve:
- Track bar joints and mounting bolts.
- Tie rod ends.
- Drag link ends.
- Ball joints.
- Steering-box connections.
- Wheel bearings.
- Suspension bushings.
- Tire and wheel condition.
- Alignment and steering geometry.
The underlying cause should be identified before replacing parts.
A steering stabilizer may damp certain movements, but it cannot repair loose joints or incorrectly configured suspension geometry.
If your Wrangler experiences severe front-end shaking, have the vehicle professionally inspected before continuing normal driving.
Jeep Wrangler Steering Upgrade Installation Checklist
Installing heavy-duty steering linkage requires correct procedures and careful inspection.
Step 1: Inspect the Existing Front End
Check the tie rod, drag link, track bar, ball joints, steering box, and associated hardware.
Repair any worn or damaged components before returning the vehicle to regular use.
Step 2: Confirm Product Fitment
Verify your Wrangler's model year, axle configuration, suspension height, and wheel specifications.
Choose the correct factory-location or flip configuration.
Step 3: Review the Included Components
Inspect the steering bars, Dual Force ends, replacement parts, and installation hardware.
Confirm the package matches the selected configuration.
Step 4: Follow the Correct Installation Instructions
Use the manufacturer's mounting procedures, specified hardware, and torque requirements.
Do not substitute instructions from another steering-kit manufacturer.
Step 5: Check Component Clearance
Verify that the steering system clears the wheels, differential cover, brakes, stabilizer, and suspension components.
The linkage should move correctly throughout the vehicle's intended steering and suspension range.
Step 6: Perform a Professional Alignment
After installation, have the front-wheel toe, steering-wheel centering, and overall steering system checked.
Correct alignment is essential for safe operation and proper tire wear.
Step 7: Reinspect After Driving
Follow EWO's recommendations for checking hardware and joint condition after installation.
Regular inspection is especially important after demanding off-road use.
What Does a Jeep Wrangler Heavy-Duty Steering Upgrade Cost?
The total cost depends on the steering kit, selected configuration, optional hardware, required modifications, and installation labor.
A complete steering upgrade may involve more than the initial purchase price.
Costs to Consider
Your project budget may need to include:
- Heavy-duty tie rod and drag link.
- Steering ends.
- Optional mounting hardware.
- Wheel spacers where required.
- Track bar geometry-related components.
- Drilling or reaming work where applicable.
- Professional installation.
- Wheel alignment.
Why Included Replacement Ends Matter
Some steering kits require replacement joints to be purchased separately.
EWO's advertised four extra steering ends can be a useful feature when comparing complete packages.
However, buyers should still consider the actual fitment and future maintenance requirements.
Check Current Pricing
Product prices and optional accessories may change.
Review the current EWO E30112 listing for the latest price, available finish choices, and configuration options.
How to Choose the Best Heavy-Duty Steering Kit for Your Wrangler
The best steering system is the one that fits your Jeep correctly and matches its intended use.
Before ordering, confirm the following details.
Essential Buying Checklist
Buying Question
Why It Matters
Is the vehicle a JK or JKU?
Confirms platform compatibility
Is the model year 2007–2018?
Verifies the advertised application
What front axle is installed?
Affects steering-knuckle fitment
How much suspension lift is installed?
Determines configuration choice
What wheel diameter is installed?
Important for joint clearance
What is the wheel backspacing?
Affects steering-end fitment
Are wheel spacers necessary?
Influences safe installation
Is the steering stabilizer in the factory location?
Relevant to EWO requirements
Are aftermarket knuckles installed?
May change mounting compatibility
Is the track bar modified?
Affects steering geometry
Are replacement steering ends available?
Important for future maintenance
Will professional alignment be performed?
Essential after linkage replacement
Avoid Buying Based on Appearance Alone
A larger steering bar may look more substantial, but a complete system must also provide correct joint fitment and articulation.
Don't Ignore Wheel Clearance
A heavy-duty steering kit may require more wheel clearance than the factory linkage.
Confirm every wheel requirement before buying.
Don't Assume Every Lifted Jeep Needs a Flip Kit
A drag link flip should be selected according to the exact suspension and steering configuration.
Don't Overlook Maintenance
Even premium steering ends require regular inspection.
Keep protective boots in good condition, follow lubrication recommendations, and inspect joints after significant impacts.
Why Buy East West Off Road's Heavy-Duty Steering Kit?
East West Off Road's E30112 is an option for JK and JKU owners seeking a complete heavy-duty steering-linkage upgrade.
Its advertised features include:
- Solid 1.5-inch 7075 aluminum steering bars.
- Heavy-duty Dual Force 1-ton steering ends.
- Four additional replacement steering ends.
- Greaseable joint construction.
- Hex-style adjustment features.
- Right- and left-hand threaded steering ends.
- Factory-location and flip configurations.
- Aluminum and black anodized finish choices.
- Manufacturer-advertised warranty coverage.
These features are relevant to Wrangler owners who value substantial linkage construction, serviceability, and steering configuration choices.
When comparing the available options, consider a 1 ton steering kit JK that matches your axle, suspension, wheel setup, and intended driving conditions.
The correct steering system should always be selected according to fitment and proper installation requirements.
Frequently Asked Questions (FAQs)
1. What is Jeep Wrangler heavy duty steering?
Jeep Wrangler heavy-duty steering generally refers to upgraded steering components designed for modified or demanding vehicle applications. These may include stronger tie rods, drag links, heavy-duty steering ends, and configurations for lifted suspensions.
2. Why should I upgrade my Jeep Wrangler steering system?
An upgrade may be appropriate when factory steering components are worn or damaged, or when larger tires, suspension lifts, and demanding off-road driving create additional steering requirements.
3. What does a 1-ton Jeep steering kit include?
The EWO E30112 is a complete tie rod and drag link kit featuring solid 7075 aluminum center sections, four Dual Force steering ends, and four extra replacement ends.
4. Does the EWO steering kit fit a 2007–2018 Jeep Wrangler JK?
The kit is advertised for 2007–2018 Wrangler JK and JKU applications. Exact compatibility depends on the front axle, steering knuckles, wheels, and suspension setup.
5. Does the kit fit a Jeep Wrangler Unlimited JKU?
Yes. EWO markets the E30112 for both two-door JK and four-door JKU applications, subject to the product's fitment requirements.
6. Is the EWO steering kit made from solid 7075 aluminum?
According to the supplied product specifications, the kit uses solid 1.5-inch 7075 aluminum center sections.
7. Is 7075 aluminum better than steel for Wrangler steering?
7075 aluminum offers high strength relative to its weight and different material characteristics from conventional steel. The best choice depends on the complete steering design and intended application.
8. Can a heavy-duty aluminum tie rod bend?
Yes. Although properly engineered aluminum steering bars can undergo limited elastic deformation, severe impacts may cause permanent damage.
9. What are Dual Force steering ends?
Dual Force is EWO's advertised heavy-duty steering-end design. Its supplied specifications identify 4130 steel bodies and 4340 hardened-steel ball pins.
10. Are the steering ends greaseable?
Yes. EWO describes its Dual Force 1-ton steering ends as greaseable. Follow the manufacturer's maintenance instructions for lubrication and inspection.
11. How many spare steering ends come with the kit?
The EWO E30112 includes four additional replacement steering ends beyond the four primary ends.
12. What warranty does EWO offer?
EWO advertises a two-year unlimited warranty on the steering ends and a limited lifetime warranty on the aluminum center sections. Buyers should review the current written warranty terms and exclusions.
13. What is the difference between under-the-knuckle and over-the-knuckle steering?
Under-the-knuckle steering uses the lower factory-style drag link connection. Over-the-knuckle steering relocates the drag link connection to a higher position as part of a compatible configuration.
14. Which configuration should I choose for a Jeep with a 2-inch lift?
EWO's supplied guidance recommends the factory-location configuration for lifts under 3 inches. Confirm the rest of the vehicle's steering and suspension setup before ordering.
15. Which configuration is recommended for a 4-inch lift?
EWO recommends the over-the-knuckle flip configuration for lifts over 3 inches. Check track bar geometry and any additional installation requirements.
16. Does the EWO steering kit require 17-inch wheels?
Yes. The supplied fitment notes specify 17-inch wheels with 4.75 inches of backspacing or less.
17. Do factory Rubicon wheels require spacers?
According to EWO's fitment notes, factory Rubicon and AEV wheels require 1.5-inch wheel spacers for this steering system.
18. Can I relocate my steering stabilizer?
The supplied product guidance states that the stabilizer must remain in its factory location. Contact EWO before using a different mounting arrangement.
19. Is the steering kit a bolt-on installation?
The EWO kit is marketed as a bolt-on upgrade without welding. However, some configurations may require drilling, reaming, or additional modifications.
20. Will this steering kit fit Dana 30 and Dana 44 front axles?
The kit is advertised for JK/JKU vehicles, but exact axle and steering-knuckle compatibility must be verified before purchase.
21. Is heavy-duty steering necessary for 35-inch tires?
Not automatically. Tire size is one factor, but component condition, wheel offset, suspension setup, and intended use also matter.
22. Is a 1-ton steering kit suitable for rock crawling?
A properly engineered heavy-duty steering system may be appropriate for a rock-crawling build. The front axle, track bar, ball joints, and surrounding components must also be suitable for the intended conditions.
23. Will a heavy-duty steering kit eliminate death wobble?
Not necessarily. Death wobble can involve several steering and suspension components. A complete professional diagnosis is necessary.
24. Do I need an alignment after installing heavy-duty steering?
Yes. A professional front-end alignment is recommended after replacing the tie rod and drag link. Toe, steering-wheel centering, and overall steering operation should be verified.
25. Is this steering kit suitable for a daily-driven Wrangler?
A properly selected and installed heavy-duty steering kit may be suitable for daily driving. Correct fitment, alignment, steering geometry, and joint maintenance are essential.
26. What is the difference between a 1-ton and 2.5-ton Jeep steering kit?
These names describe aftermarket product categories rather than standardized strength ratings. Compare actual bar dimensions, joint designs, materials, compatibility, and installation requirements.
27. How much does a Jeep Wrangler heavy-duty steering kit cost?
Pricing depends on the product, finish, steering configuration, optional accessories, and installation requirements. Check the current EWO listing for updated pricing.
28. Where can I buy Jeep Wrangler heavy-duty steering parts?
East West Off Road offers its E30112 1-ton 7075 aluminum tie rod and drag link steering kit for advertised 2007–2018 JK and JKU applications. Confirm compatibility and the correct configuration before ordering.
